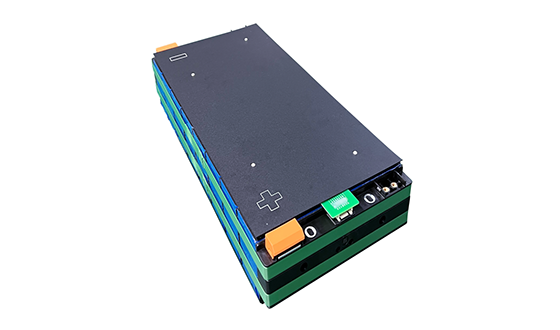

Standardized cells
Release time:
2022-06-09 10:32
Product Features:
►Modular design, easy maintenance and installation;
►High integration, neat and beautiful;
►High-strength bracket design, sturdy and durable structure;
►Adopt vehicle-grade CCS integrated row, which is simple and efficient in groups;
►Automatic laser welding, controllable process, with MES traceability function;
►Safe and reliable, with its own fuse function, and additional insurance, it can quickly return to normal use under abnormal conditions;
►Adapt to a variety of thermal management schemes to adapt to different working environments.
Application areas:
Home energy storage, industrial and commercial energy storage, RV power supply, network site energy, etc.
Technical Specifications:
|
serial number |
project |
parameter |
|
|
1 |
Product number |
UPMF8100A |
UPMF 6300A |
|
2 |
standard |
25.6V |
19.2V |
|
3 |
Nominal capacity |
100Ah |
300Ah |
|
4 |
combination |
1P8S |
2P6S |
|
5 |
Charging voltage |
29.2V |
21.9V |
|
6 |
recharging current |
Continuous current: 100A |
Continuous current: 300A |
|
7 |
Discharge current |
Continuous current: 100A |
Continuous current: 300A |
|
8 |
Factory voltage |
25.2V – 26.8V |
18.9V-20.1V |
|
9 |
Violet discharge rate |
≤2.5%/month |
≤2.5%/month |
|
10 |
charging temperature |
0℃ ～+65℃ |
0℃ ～+65℃ |
|
11 |
Discharge temperature |
-20℃～+65℃ |
-20℃～+65℃ |
|
12 |
size |
486*221.6*83.5mm |
705*221.6*125mm |
|
13 |
battery weight |
17 ± 0.5KG |
39 ± 0.5KG |
