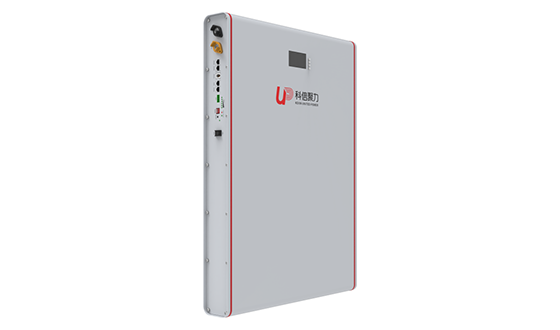

Wall Mounted Home Storage
Release time:
2022-09-09 11:44

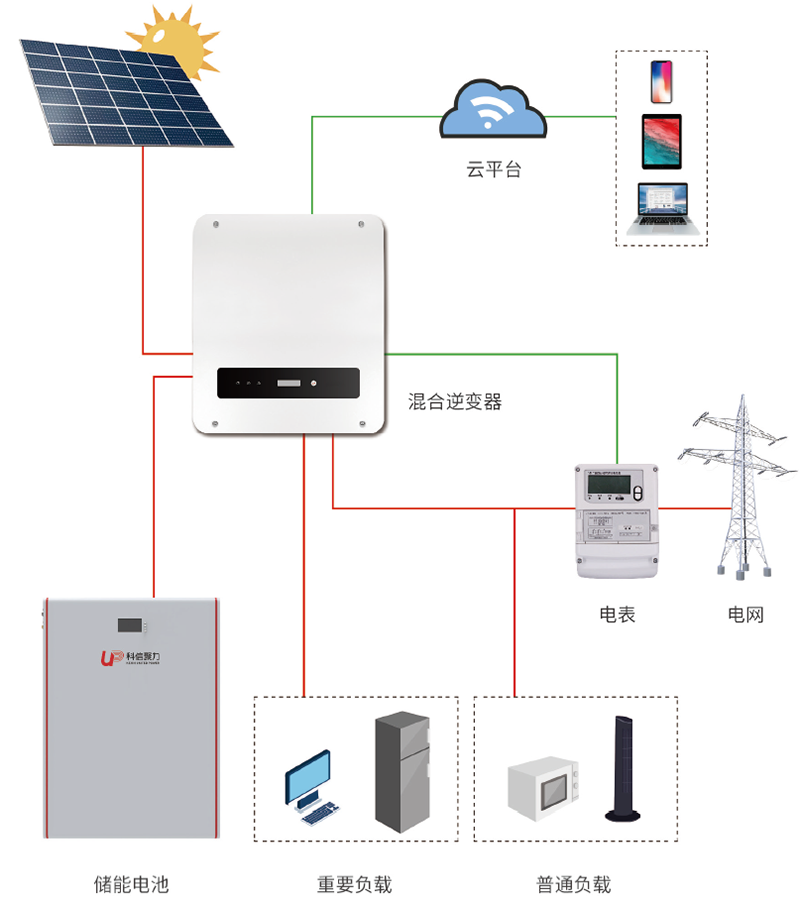

System features:
rooftop photovoltaic power generation, self-generated and self-used, surplus power grid or battery charging;
battery energy storage to store photovoltaic power to cope with sudden power outages;
reduce electricity costs and improve electricity quality.
Product Features:
►Ultra-thin wall-mounted home storage design, beautiful and atmospheric, perfectly integrated into the home environment;
►Built-in high-stability BMS system with overcharge, overdischarge, overcurrent, high and low temperature protection functions;
►The built-in LED screen displays information such as voltage, current, temperature, etc., which is convenient for users to query;
►Supports up to 16 groups of parallel use, to cope with large power demand environment;
►Adapt to mainstream brand inverters in the market, providing users with more choices.
Application areas:
home energy storage
Technical Specifications:
|
serial number |
project |
parameter |
|
1 |
Product number |
UP PF16100A |
|
2 |
standard |
51.2V _ |
|
3 |
Nominal capacity |
1 00Ah |
|
4 |
combination |
1P 16S _ |
|
5 |
Charging voltage |
58.4V _ |
|
6 |
recharging current |
Continuous: 50A Max: 100A |
|
7 |
Discharge current |
Continuous current: 100A |
|
8 |
Factory voltage |
50.4V – 53.6V _ _ |
|
9 |
self-discharge rate |
≤2.5%/month |
|
10 |
Balanced way |
passive equalization |
|
11 |
charging temperature |
0 ℃ ～+ 65 ℃ |
|
12 |
Discharge temperature |
- 20 ℃～+ 65 ℃ |
|
13 |
size |
750 * 550 * 87.5 ± 1mm _ |
|
14 |
weight |
50 ± 1KG _ |
