Indoor energy storage system
Release time:
2022-09-09 11:46

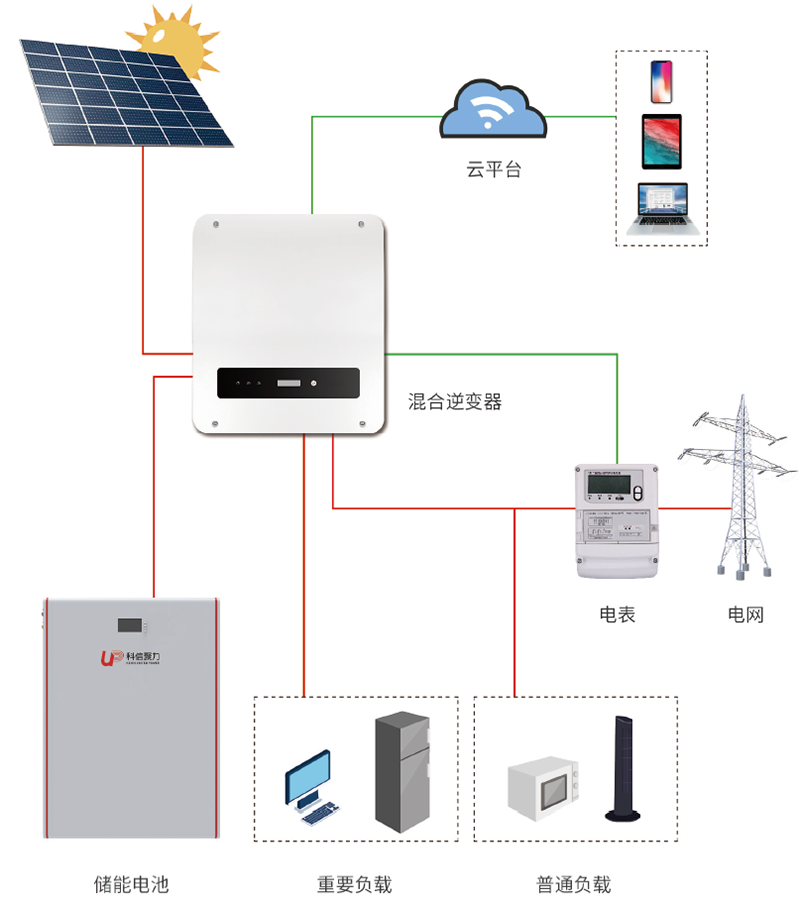

System features:
rooftop photovoltaic power generation, self-generated and self-used, surplus power grid or battery charging;
battery energy storage to store photovoltaic power to cope with sudden power outages;
reduce electricity costs and improve electricity quality.
Product Features:

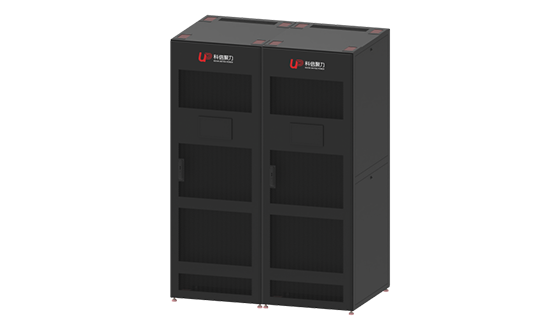

►Standard cabinet design, easy installation and maintenance;
►Internal modular design to meet different capacity requirements;
►On-grid and off-grid switching, a good helper for enterprise emergency power backup;
►Intelligent control, shaving peaks and filling valleys, reducing electricity costs;
►High-power charging and discharging to deal with different scenarios.
Application areas:
Optical storage and charging integrated distribution and storage, distributed energy storage, data center power distribution
Technical Specifications:
|
System parameters |
|
|
|
|
|
|
Product number |
UPSF6072B |
UPSF6092B |
UPSF60113B |
UPSF60133B |
|
|
Maximum AC output power |
60KW |
60KW |
60KW |
60KW |
|
|
Maximum AC input power |
60KW |
60KW |
60KW |
60KW |
|
|
System capacity range |
71.68～133.12kWh |
71.68～133.12kWh |
71.68～133.12kWh |
71.68～133.12kWh |
|
|
Battery Type |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
|
|
Protection class |
IP21 |
IP21 |
IP21 |
IP21 |
|
|
Cabinet size (WXDXH) |
1600X800X2200mm |
1600X800X2200mm |
1600X800X2200mm |
1600X800X2200mm |
|
|
Inverter technical parameters |
|
|
|
|
|
|
AC voltage |
400Vac three-phase |
400Vac three-phase |
400Vac three-phase |
400Vac three-phase |
|
|
battery voltage range |
150～750V |
150～750V |
150～750V |
150～750V |
|
|
Maximum charge and discharge current |
100A |
100A |
100A |
100A |
|
|
Rated frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
|
Battery technical parameters |
|
|
|
|
|
|
Rated voltage |
358.4V |
460.8V |
563.2V |
665.6V |
|
|
Rated Capacity |
200Ah |
200Ah |
200Ah |
200Ah |
|
|
Cycles |
≥6000 |
≥6000 |
≥6000 |
≥6000 |
|
|
Single battery module voltage |
25.6V |
25.6V |
25.6V |
25.6V |
|
|
Maximum charge and discharge current |
200A |
200A |
200A |
200A |
|
|
battery connection |
14 battery modules connected in series |
18 battery modules connected in series |
22 battery modules connected in series |
26 battery modules connected in series |
|
