Floor stacking home storage
Release time:
2022-09-09 11:49

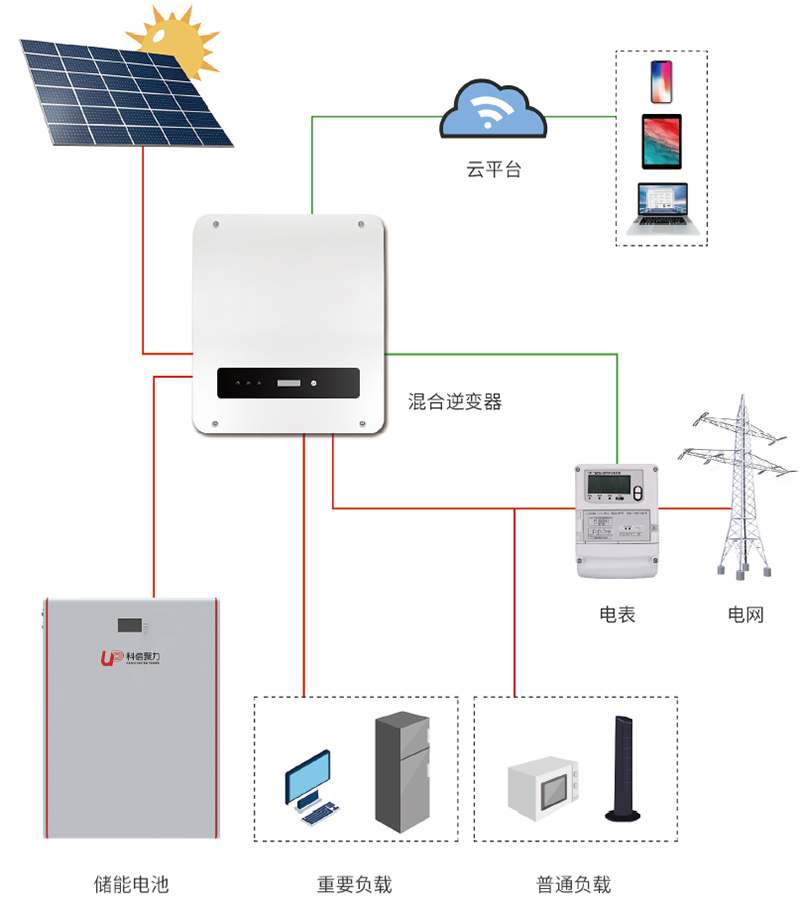

System features:
rooftop photovoltaic power generation, self-generated and self-used, surplus power grid or battery charging;
battery energy storage to store photovoltaic power to cope with sudden power outages;
reduce electricity costs and improve electricity quality.
Product Features:
►Safe and reliable, preventing the possibility of thermal runaway;
►Modular design, easy installation and maintenance;
►10-50KWH power optional optional;
►Automatic laser welding process, stable and reliable quality;
►Adapt to mainstream inverter brands in the market;
► Floor stacking installation, using 2U ultra-thin modules, saving space and installation costs.
Application areas:
Home energy storage, industrial and commercial energy storage
Technical Specifications:
|
Basic parameters |
|||
|
Product number |
UPPF32100A |
UPPF64100A |
UPPF96100A |
|
Number of battery packs |
2 |
4 |
6 |
|
Rated voltage |
102.4V |
204.8V |
307.2V |
|
Rated energy |
10kWh |
20kWh |
30kWh |
|
size |
450*700*380 |
450*700*560 |
450*700*740 |
|
weight |
100 |
190 |
280 |
|
Protection class |
IP55 |
IP55 |
IP55 |
|
Maximum charge and discharge current |
100A |
100A |
100A |
|
range of working temperature |
Charging : 0℃～65 ℃; |
||
|
Discharge: -20℃～65 ℃; |
|||
|
Battery Module Parameters |
|||
|
standard |
51.2V _ |
||
|
Nominal capacity |
100Ah |
||
|
Operating temperature |
-20℃-65℃ |
||
|
environment humidity |
≤95%RH (no condensation) |
||
|
series-parallel mode |
1P16S _ |
||
