Outdoor energy storage system
Release time:
2022-09-09 11:51
System features:

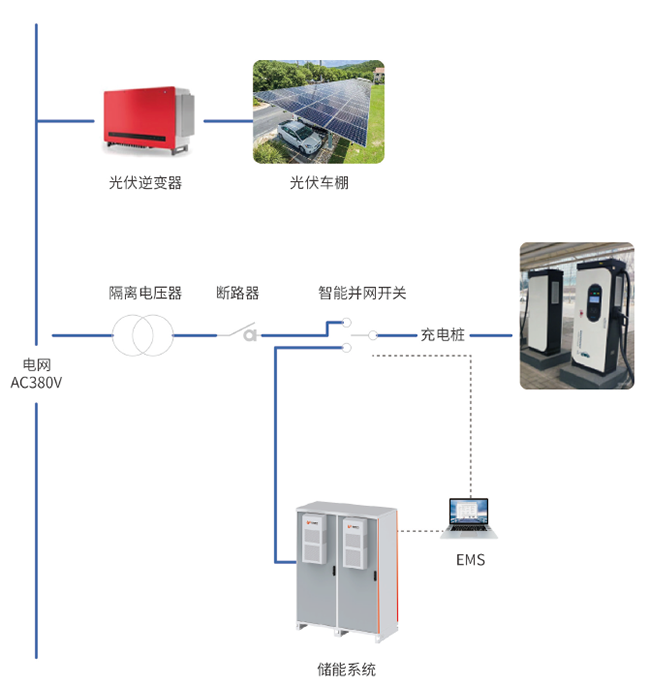

Photovoltaic carport, self-generated and self-used, at the same time, rooftop photovoltaic power generation, self-generated and self-used, surplus power grid or battery charging;
battery energy storage to store photovoltaic power to cope with sudden power outages;
reduce electricity costs and improve power quality.
Product Features:
►Connect to photovoltaics, charging piles and power grids to form an integrated system of optical storage and charging;
►Standard cabinet design, multiple units can be paralleled to support MW-level energy storage system requirements;
►Internal modular design to meet different capacity requirements;
►High protection level, can be used in various harsh environments;
►Intelligent thermal management system to cope with different temperature environments;
►Built-in fire protection system to deal with extreme situations such as thermal runaway.
Application areas:
Optical storage and charging integrated distribution and storage
Technical Specifications:
|
System parameters |
|
||||||
|
Product number |
UPSF6072A |
UPSF6092A |
UPSF60113A |
UPSF60133A |
|||
|
Maximum AC output power |
60KW |
60KW |
60KW |
60KW |
|||
|
Maximum AC input power |
60KW |
60KW |
60KW |
60KW |
|||
|
System capacity range |
71.68kWh |
92.162kWh |
112.64kWh |
133.12kWh |
|||
|
Battery Type |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
|||
|
Protection class |
IP54 |
IP54 |
IP54 |
IP54 |
|||
|
Cabinet size (WXDXH) |
1600X800X2200mm |
1600X800X2200mm |
1600X800X2200mm |
1600X800X2200mm |
|||
|
Inverter technical parameters |
|
||||||
|
AC voltage |
400Vac three-phase |
400Vac three-phase |
400Vac three-phase |
400Vac three-phase |
|||
|
battery voltage range |
150～750V |
150～750V |
150～750V |
150～750V |
|||
|
Maximum charge and discharge current |
100A |
100A |
100A |
100A |
|||
|
Rated frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|||
|
Battery technical parameters |
|||||||
|
Rated voltage |
358.4V |
460.8V |
563.2V |
665.6V |
|||
|
Rated Capacity |
200Ah |
200Ah |
200Ah |
200Ah |
|||
|
Cycles |
≥6000 |
≥6000 |
≥6000 |
≥6000 |
|||
|
Single battery module voltage |
25.6V |
25.6V |
25.6V |
25.6V |
|||
|
Maximum charge and discharge current |
200A |
200A |
200A |
200A |
|||
|
battery connection |
14 battery modules connected in series |
18 battery modules connected in series |
22 battery modules connected in series |
26 battery modules connected in series |
|||
